FAQ
6. Common Queries and Their Solutions
Let's tackle some of the questions that might be swirling around in your head.

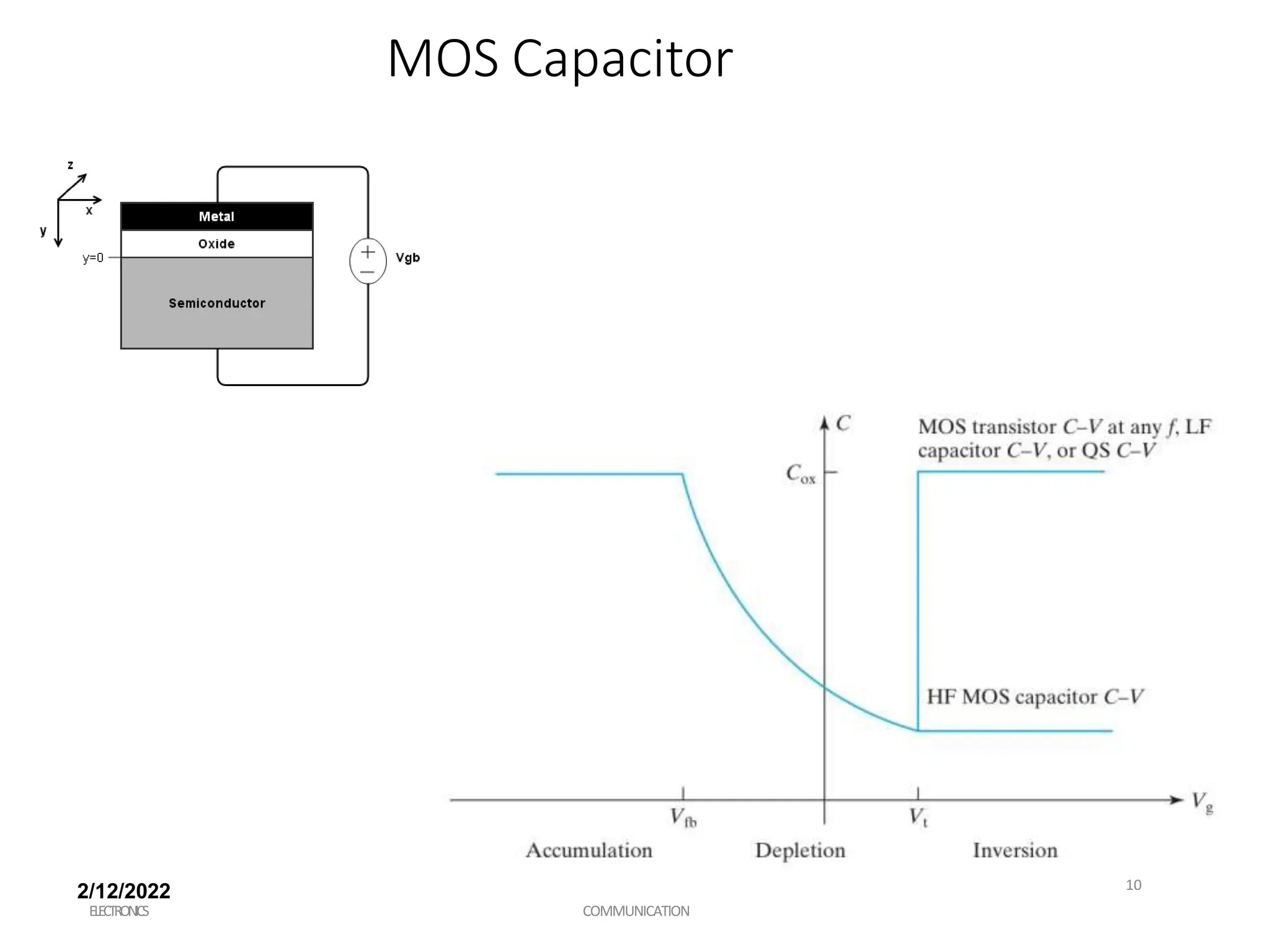

Q: How do I measure parasitic capacitance in a MOSFET?
A: Measuring parasitic capacitance accurately requires specialized equipment, such as an LCR meter or a network analyzer. You'll need to bias the MOSFET to its operating point and then measure the capacitance between the terminals of interest. Be aware that the measured capacitance can vary with frequency and bias voltage, so it's important to perform measurements under realistic operating conditions.

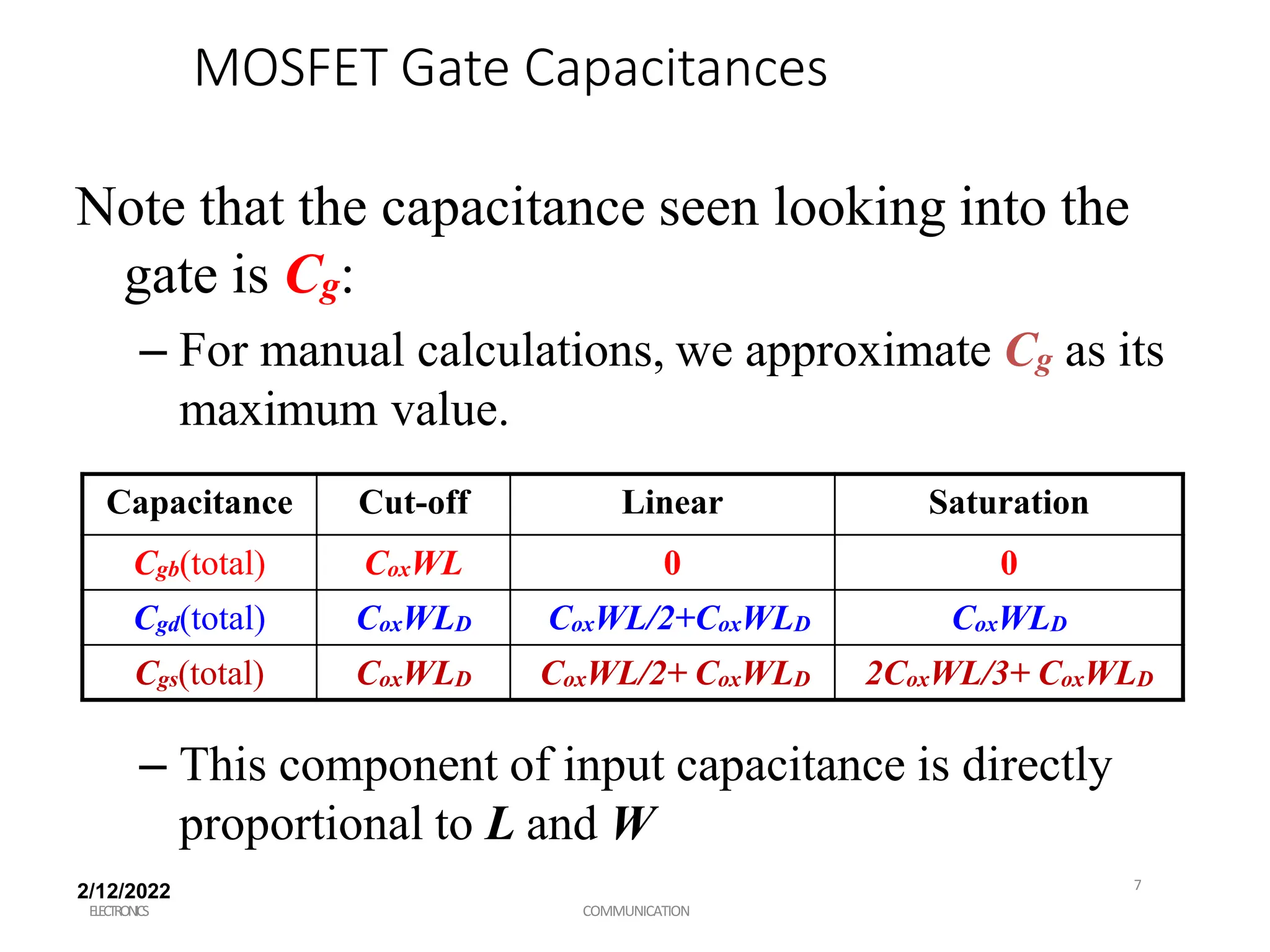

Q: What is the most critical parasitic capacitance to minimize?
A: Generally, the gate-drain capacitance (Cgd) is often the most critical to minimize. This is because Cgd creates a feedback path between the output (drain) and the input (gate), which can lead to instability and oscillations. Reducing Cgd can significantly improve the stability and bandwidth of the circuit.
Q: Does increasing the gate resistor help reduce parasitic capacitance effects?
A: Increasing the gate resistor can sometimes help, but it's a bit of a balancing act. A larger gate resistor can slow down the switching speed of the MOSFET, which can reduce the impact of parasitic capacitance. However, it also increases switching losses and can lead to slower overall performance. Its best to use other optimization techniques first.
Q: Are GaN MOSFETs always better than Silicon MOSFETs?
A: Not always! GaN MOSFETs often have superior performance for high-frequency, high-power applications due to lower parasitic capacitances and faster switching. However, they can be more expensive and may require different gate drive circuitry. Silicon MOSFETs remain a cost-effective solution for many applications where the absolute highest performance isn't critical. The best choice depends on your specific needs and budget.
