Understanding Impedance

1. What even is impedance, anyway?

Okay, let's tackle this head-on. Impedance? Sounds like something you'd find in a sci-fi movie, right? But really, it's just a measure of how much a circuit resists the flow of alternating current (AC). Think of it like a pipe with some gunk in it. The gunk makes it harder for water to flow through, right? Impedance does something similar to electrical signals.

Now, this "gunk" isn't just resistance (that's part of it, sure). It's also the effect of capacitance and inductance, which are kind of like tiny electrical reservoirs and coils that store and release energy, messing with the smooth flow of AC. So impedance is the whole shebang — the total opposition to AC in a circuit. It's measured in Ohms (), named after Georg Ohm, the dude who figured out the relationship between voltage, current, and resistance. Give that man a medal!

Impedance matters A LOT in electrical engineering, especially when you're dealing with radio frequencies (RF) and transmitting signals over cables. Mismatched impedance can cause signal reflections, meaning some of your signal bounces back instead of reaching its destination. This is bad news because it weakens the signal, creates interference, and can even damage equipment. Imagine trying to yell across a canyon and hearing your echo louder than your own voice. Annoying, right? That's impedance mismatch in a nutshell.

Think of impedance matching like finding the perfect dance partner. If you're both in sync, the dance flows smoothly. But if one of you is doing the tango while the other's trying the cha-cha, things are going to get awkward, fast. In electronics, you want everything "dancing" at the same frequency and impedance for optimal signal transfer. That's why 50 Ohms is such a big deal; it's a common "dance step" that a lot of equipment is designed to follow.

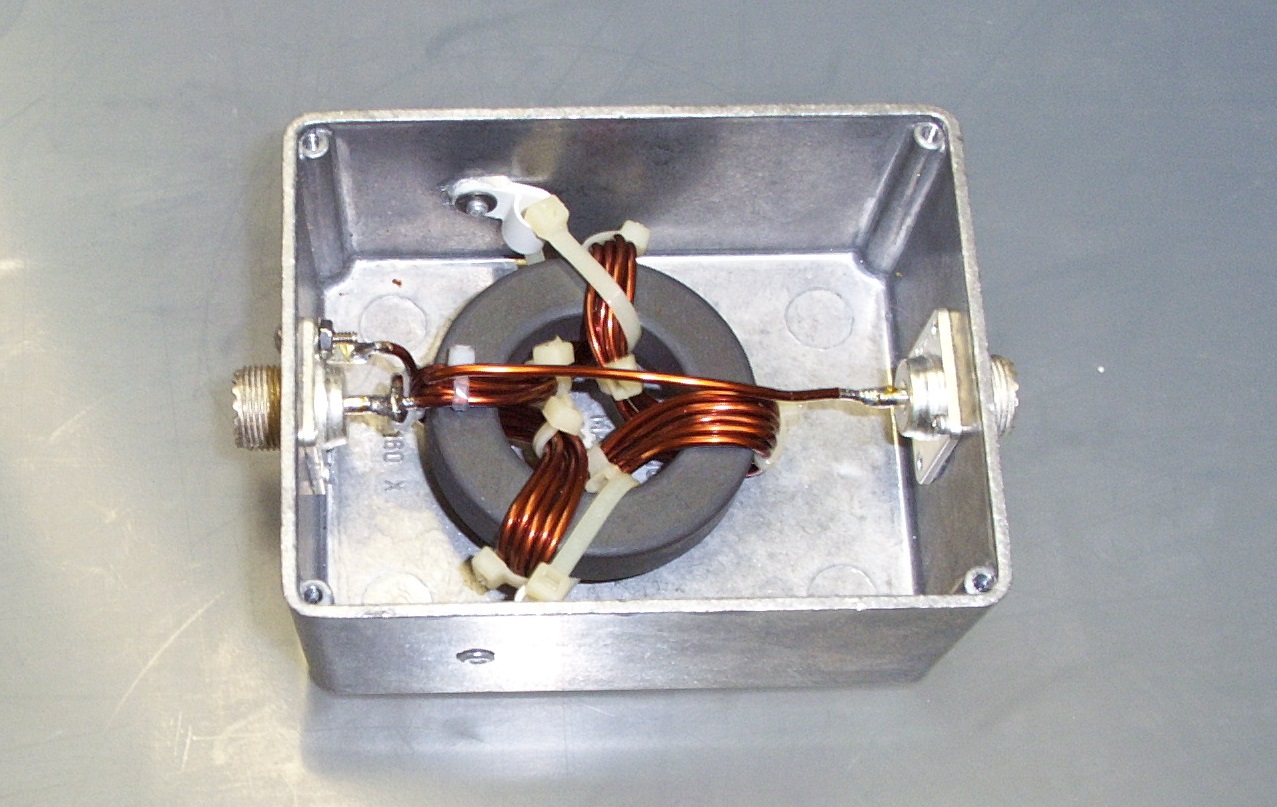

75 To 50 Ohm Unun Impedance Transformer

Is 50 Ohm "Low" Impedance? The Plot Thickens

2. Relative terms and context are key!

So, is 50 Ohm "low"? Well, it depends on what you're comparing it to. In the world of RF and signal transmission, 50 Ohm is considered a standard impedance. It's like the metric system of the RF world. Its not particularly low in an absolute sense, but it's lower than, say, 75 Ohm, which is often used for television signals. Think of it like this: 50 Ohm is more "middle-of-the-road" than "rock-bottom low".

Why 50 Ohm and not some other number? Good question! There's a bit of engineering history involved. Back in the day, engineers were trying to find the impedance that provided the best balance between power handling capability and signal loss in coaxial cables. They discovered that around 30 Ohms gave the highest power handling and around 77 Ohms gave the lowest signal loss. 50 Ohm was a happy compromise between the two. It's a sweet spot.

Imagine you're designing a radio transmitter. You need to get the most power out of the transmitter and down the cable to the antenna, without losing a ton of signal along the way. 50 Ohm cables and connectors allow you to do that relatively efficiently. It's a design choice based on practical trade-offs. If you were designing a system where power handling was absolutely critical (like a super-powerful radar), you might choose a slightly lower impedance. If minimizing signal loss was paramount, you might opt for a higher impedance (though youd need to consider other factors like voltage breakdown).

Furthermore, the term "low impedance" can be misleading. Compared to the impedance of, say, free space (which is around 377 Ohms), 50 Ohms is definitely on the lower side. But in the context of common electronic components and systems, it's a widely accepted and perfectly reasonable impedance value. So, it's all about perspective!

Microstrip Line Characteristic Impedance Is Not 50 Ohm In Source Term

Why 50 Ohm is So Popular

3. It's all about compatibility, baby!

The popularity of 50 Ohm is largely due to standardization. Once it became a widely adopted standard, manufacturers started designing their equipment to work with it. This created a self-reinforcing cycle. Because everyone else was using 50 Ohm, it made sense for new companies to design their products to be compatible. It's like the QWERTY keyboard layout — not necessarily the best layout, but we're all used to it!

This standardization has a huge advantage: interoperability. You can connect a 50 Ohm signal generator to a 50 Ohm spectrum analyzer using a 50 Ohm cable, and everything should work just fine (assuming everything else is in order). This makes designing, building, and troubleshooting RF systems much easier. Can you imagine the chaos if every piece of equipment had a different impedance requirement? It would be a nightmare!

Moreover, 50 Ohm components are readily available from a wide range of suppliers. You can find 50 Ohm cables, connectors, attenuators, terminations, and countless other parts in almost any electronics store or online retailer. This abundance makes it cheaper and easier to build and maintain 50 Ohm systems. Imagine if you had to custom-build every single connector and cable — that would get expensive fast!

Ultimately, the widespread adoption of 50 Ohm impedance has led to a mature ecosystem of compatible equipment and components. This simplifies design, reduces costs, and improves reliability. It's a win-win for engineers and consumers alike. So, while it might not be the absolute "best" impedance for every single application, it's a practical and convenient standard that has stood the test of time.

50 Ohm Impedance Matching Calculator

Alternatives to 50 Ohm

4. Sometimes, you need a different tune.

While 50 Ohm is dominant in many RF applications, it's not the only impedance in town. 75 Ohm, for example, is commonly used for television signals and video equipment. The higher impedance reduces signal loss over long cable runs, which is important for cable TV and satellite systems. Think of it as choosing a different size straw for a different drink. A thicker milkshake needs a wider straw!

Another example is the use of high impedance probes for measuring circuits. These probes are designed to have a very high impedance so they don't significantly load the circuit being measured. If the probe's impedance was too low, it would draw current from the circuit, distorting the measurements. It's like trying to weigh yourself on a scale while someone's leaning on it — you won't get an accurate reading!

In audio applications, you might encounter a range of impedances depending on the equipment. Headphones, for example, can have impedances ranging from a few Ohms to several hundred Ohms. Matching the impedance of the headphones to the output impedance of the amplifier is important for optimal power transfer and sound quality. If the impedances are mismatched, you might get distortion or a weak signal. It's like trying to fit a square peg in a round hole — it just doesn't work!

The choice of impedance depends on the specific application and the trade-offs between power handling, signal loss, and other factors. While 50 Ohm is a good general-purpose impedance, it's important to understand the alternatives and choose the impedance that best suits your needs. Don't be afraid to deviate from the norm if it makes sense for your particular situation!

Manufacture 50 Ohm Low Loss ALSR240 Coaxial Cable Assembly With N Male

So, What's the Takeaway? 50 Ohm

5. It's about context, compromise, and convenience.

Alright, we've covered a lot of ground. So, let's summarize. Is 50 Ohm "low" impedance? In the grand scheme of things, perhaps. But in the world of RF and signal transmission, it's a widely accepted and practical standard. It's not necessarily the "lowest" possible impedance, but it strikes a good balance between power handling and signal loss.

The popularity of 50 Ohm is largely due to its standardization and the resulting availability of compatible components. This makes designing, building, and troubleshooting RF systems much easier and more cost-effective. It's like having a common language that everyone speaks — it simplifies communication.

While 50 Ohm is a good general-purpose impedance, it's not the only impedance out there. Other impedances, such as 75 Ohm, are used in specific applications where they offer advantages over 50 Ohm. The key is to understand the trade-offs and choose the impedance that best suits your needs.

Ultimately, the choice of impedance is a design decision that depends on a variety of factors. 50 Ohm is a convenient and well-established standard, but it's important to be aware of the alternatives and make informed choices based on the specific requirements of your application. Now go forth and design awesome things!

50 Ω Connectors

FAQs

6. Your burning questions, answered!

Q: Why is impedance matching so important?

A: Impedance matching ensures that the maximum amount of power is transferred from one circuit to another. Mismatched impedance can cause signal reflections, leading to signal loss, interference, and potentially damaging equipment. It's like making sure the gears in a machine mesh properly to avoid wasting energy.

Q: Can I mix and match 50 Ohm and 75 Ohm components?

A: In general, it's best to avoid mixing 50 Ohm and 75 Ohm components unless you use impedance matching devices called impedance transformers. Connecting them directly can cause signal reflections and performance degradation. Think of it like trying to connect a garden hose to a fire hose without an adapter — it's not going to work very well.

Q: Does impedance change with frequency?

A: Yes, impedance can change with frequency, especially in circuits with capacitors and inductors. This is because the reactance of these components varies with frequency. This is why impedance matching is often more critical at higher frequencies.
